RIG HOSES & HOSE FITTING

DETAILS & SOLUTION

COMPLETE FOR :

  • HYDRAULIC HOSE
  • VIBRATION HOSE
  • KELLY HOSE
  • DRILL HOSE
  • ROTALY HOSE
  • AIR&WATER HOSE

BRAND

  • PRESSURE UP TP
  • 15,000PSI
  • SIZE ¼”- 6”
  • API STANDARD

สอบถามข้อมูลเพิ่มเติม

Categories , ,

รายละเอียดเพิ่มเติม

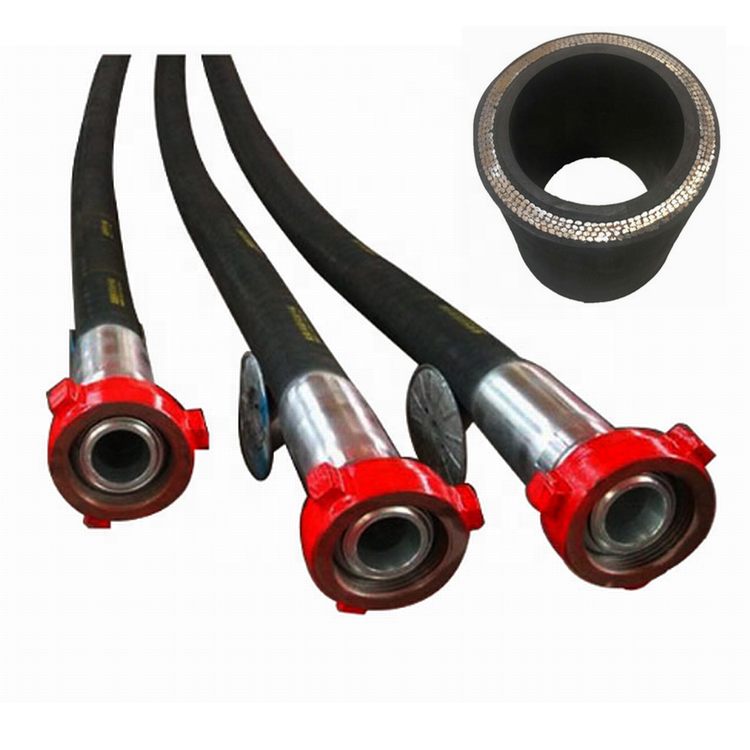

High pressure rubber mud hose, vibrator hose and drilling hose consist of 4 layers. The framework is made of steel wire rope with high strength.The inner seal layers adopts synthetic rubber which is weather,oil and heat resisting.
The material of external protective layer for rubber mud, vibrator and drilling hoses is also made of synthetic rubber which effectively resists aging,oil and abrasion.
Besides, additional layer for fireproofing can be added according to customer request.
Temperature range -4°F to +200°F (-20°C to +93°C) continuous service.
Product structure the steel wire winding drilling hose consists of the inner rubber layer, the inner glue protection layer, the medium glue layer, the wire winding reinforced layer and the outer rubber layer.
Inner tube with nitrile rubber as the main body, oil resistant, wear-resistant, acid and alkali resistance.
Tube reinforced layer a single high strength steel wire, 2~8 layers of steel wire winding structure, steel wire through the film bonding solid whole.
Outer Tube chloroprene rubber as the main body, oil resistant, wear-resistant, weathering resistance.

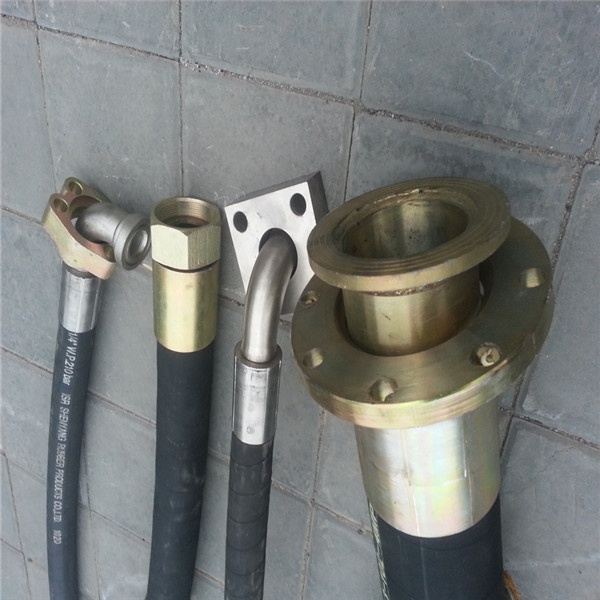

Joint type besides using API Spec 5B pipe pipe and tubing thread, it can also be provided by nonan and flange connection, and also can be made according to user’s requirements.
Execution standards API Spec 7K, SY 5469, ISO 6807, Q/LMH001
With Union or not both are OK, hose and union also can be shipped separately.
